1-5L/5-30L Drum Automatic Single Head Bottle Ropp Capping Machine FX-1D 600BPH

Brand Name : Jinwang

Model Number : FX-1D

Certification : CE,CO,ISO

Place of Origin : made in China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1 Osets per month

Delivery Time : 15-90 work days

Packaging Details : wooden cases

Name : 1-5L/5-30L Drum Single-head Automatic Capping Machine

Model : FX-1D

Capacity : ≤600BPH

Liquid level to bottle mouth distance : ≥200mm

Applicable Bottle : Min.：140×200×320mm Max.：260×290×410mm

Cap Dimension : Φ35-65mm H15-35mm

Air Source : 0.6-0.8 Mpa stable and clean air

Power Source : ～220V 50Hz

Power : 2.0KW

Weight : 1200Kg

External Dimension : 2150×1595×2280mm（L×W×H）

Contact Now

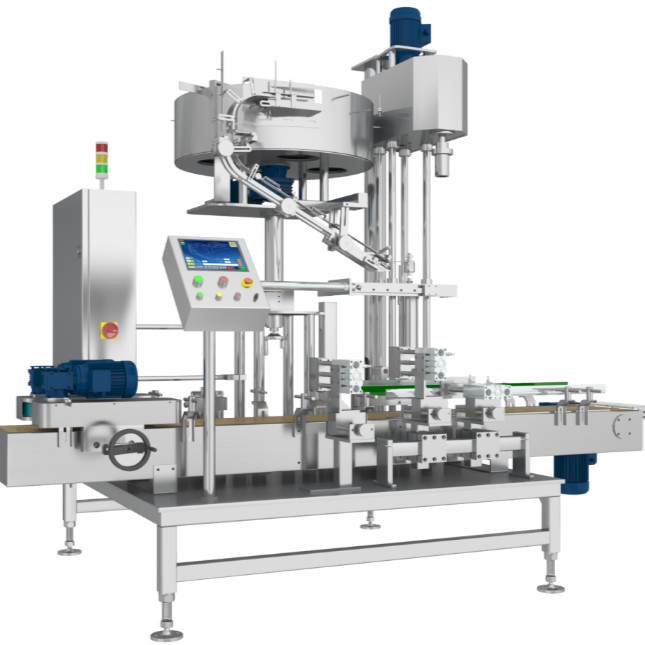

1-5L/5-30L Drum Automatic Single Head Bottle Ropp Capping Machine FX-1D 600BPH

1. Introduction

FX-1D Single-head Capping Machine is making up with cap unscrambling structure, capping structure, conveying part and control system. This capping machine has the feature of simple structure and easy adjustment which is suitable for capping of large drums.

1-5L/5-30L Drum Automatic Single Head Bottle Ropp Capping Machine FX-1D 600BPH

2. Technical Parameters

1 Capacity ≤600BPH
2 Liquid level to bottle mouth distance ≥200mm
3 Qualification Rate ≥99%
4 Applicable Bottle

Min: 140×200×320mm

Max: 260×290×410mm
5 Cap Size Φ35-65mm H15-35mm
6 Air Pressure 0.6-0.8 Mpa
7 Power Source ～220V 50Hz/2.0KW
8 Weight ~1200Kg
9 External Dimension 2150×1595×2280mm(L×W×H)

3. Advanced Features

3.1. The machine comes with a SUS304 stainless steel environmental protection cover, on the top of the equipment with an exhaust port, the production process exhaust can be discharged. The machine meets the environmental protection requirements of the agrochemical industry, and can truly achieve tasteless production.

3.2. Using the Schneider system and allocations, much more integrated and stable.

3.3. High precision: individual motor driven the capping process, torque adjustable, do not hurt the cap, and ensure the constant torque, 100% qualification rate.

3.4. Automatic positioning the cap, and no liquid shake out.
