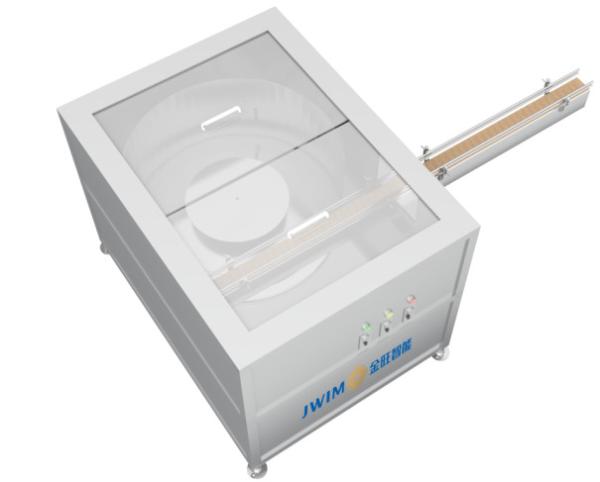

LP-120 Automatic Bottle Unscrambler
1. Introduction
This equipment consists of a bottle storage mechanism, a bottle unscrambler turntable, and a bottle stand-up mechanism. It is suitable for unscramble plastic round bottles. Disordered bottles are poured into the unscrambler, and the bottles are upright and orderly through the adjustable speed unscrambler turntable. To enter the filling conveyor line.
The equipment has compact structure, simple working principle, stable and reliable operation, high cost performance, and has the function of frequency conversion speed regulation and automatic coordination, which greatly reduces the labor intensity of the operator. It is only necessary to replace a set of molds to replace the bottle type, which is a small bottle management. Ideal for bottles.
2. Parameters
| 1 | Unscrambling Speed | ≤100bottles per minute (20ml bottle as example) *speed will be affected by the bottle size, bottle material | | 2 | Bottle Diameter | Round bottle:Φ20-40mm bottle height 50-120mm | | 3 | Air Source | 0.6-0.8Mpa | | 4 | Power Source | ～220V 50Hz/0.5KW | | 5 | External Dimension | 1200×1000×1200mm(L×W×H) | | 6 | Weight | ~350Kg | |
3. Features

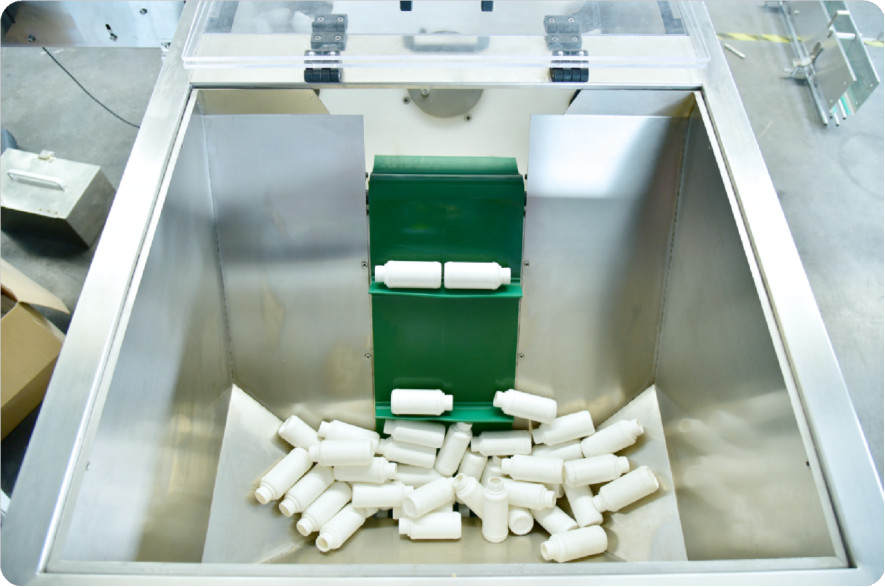

3.1. The bottle storage mechanism has large bottle storage space and large bottle storage capacity, which is very convenient for refilling bottles.
3.2. The unscramble mechanism is simple and the action is stable.
3.3.Complete control functions, simple operation, adjustable bottle unscramble speed, more stable and reliable.
3.4.This machine has an automatic coordination function. When the bottle inspection photoelectric detects that the bottle is congested in front of the filling machine, the unscrambler suspends operation, and when the bottle inspection photoelectric detects that the congestion disappears, the unscrambler resumes operation.
