12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW

Brand Name : JINWANG

Model Number : DZ-D

Certification : CE, ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1 Osets per month

Delivery Time : 15-90 work days

Packaging Details : wooden cases

Name : DZ-D Automatic Drop Packing Machine

Capacity : ≤12 Cases/Min

Applicable Carton size : L300-410mm W150-330mm H100-300mm

Height of conveying bottle : 1100±50mm

Pass rate : ≤99.9%

Air Pressure : 0.5-0.7MPa

Power supply : ～380V 50Hz/4KW

Height of conveying carton : 310mm

External Dimension : 5800×1400×1850mm（L×W×H)

Weight : 700Kg

Contact Now

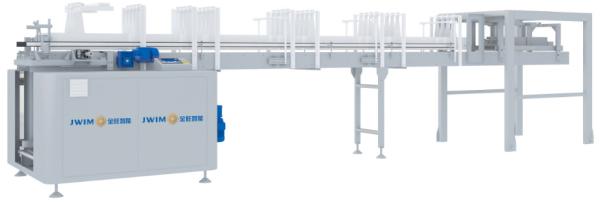

12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW

1. Introduction
The Automatic drop packing machine, also known as the drop packing machine, accurately moves the whole column of bottles to the top of the carton, and automatically puts the whole column of packaged articles into the carton through the positioning device according to the packing requirements. It is suitable for automatic packing of bottled and barreled products of various specifications.


2. Technical Parameters

1Capacity

≤12 Cases/Min

*The actual production capacity changes according to the product size, packaging material and material characteristics.

2Applicable Carton sizeL300-410mm W150-330mm H100-300mm
3Height of conveying bottle1100±50mm
4Height of conveying carton310mm
5Air supply0.5-0.7MPa
6Power supply～380V 50Hz/3.5KW
7External Dimension5800×1400×1850mm(L×W×H)
8WeightAbout 700Kg



3. Allocations

No.Name Brand
1PLCSIEMENS
2Touch ScreenSIEMENS
3Servo MotorINOVANCE
4RelaySchneider
5SensorSICK
6CylinderAIRTAC
7Solenoid ValveAIRTAC
8Circuit BreakerSchneider

4. Advantages

4.1. The track dividing and column forming mechanism controlled by servo motor is more stable and reliable. For example, 2 * 2, 2 * 3... And other packing servo motor types can meet the packing requirements of different arrangement modes.

4.2. The boxes transported by the unpacking machine are in place under the bottle dropping plate, the box supporting devices on both sides lift the boxes upward, the arranged bottles fall into the box, the box supporting device returns to the conveyor belt downward, and the box continues to be transported to the next station.

12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW12 Cases/Min DZ-D Automatic Drop Packing Machine 380V 50Hz/3.5KW
